    MITNIK asphalt mixing plant, LB2000 asphalt batching plant 160t/h

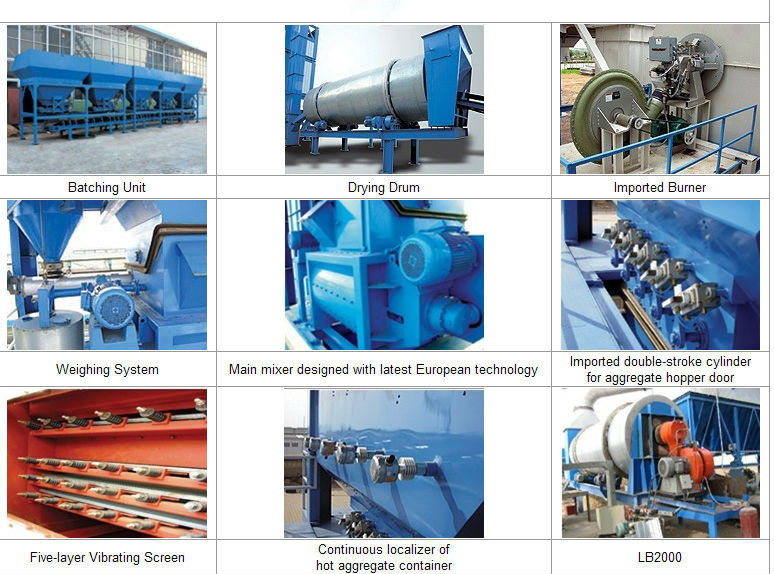

    The introduction of LB2000 asphalt mixing plant:

    Our asphalt mixing plant is a new kind of building machinery which is developed by combining advanced international technology with the features fit for civil highway construction.Burner, sensor and other key components in this plant adopt the element of an international first-line brand.Among the advantages of our asphalt mixing plant include high degree of automation, reliability, and high accuracy of measurement, etc.It is the ideal device for the construction and maintenance of high-grade highways.



    The best features of LB2000 asphalt mixing plant:

    1). The feeding belt is designed with baffles, which makes material feeding system steady and smooth.
    2). The optimized flights structure of drying drum makes the drying system more effective and stable
    3). The hot elevator adopts the double Gall's chain for hoisting, which not only prolongs the service life of the hoisting machine but also improves the running stability
    4). The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant
    5). Large capacity hot aggregate bin makes operation more convenient
    6). Our unqiue designed paddles and the powerful mixer allow the mixing operation easier, effective and reliable
    7). Dual-stage dust removal system and negative pressure dustproof design make our asphalt mixing plant ecofriendly and economical
    8). The computer-controlled system, auto/manual switchable, and auto self-diagnosis program makes the operation easy and safe
    9). Overall modular design makes the transportation and installation more convenient and fast



    Paremeters of LB series asphalt mixing plant:


    ModelLB1000LB1500LB2000LB3000LB4000
    Rated Production Capacity80t/h120t/h160t/h240t/h320t/h
    Power295kw342kw476kw608kw800kw
    Cold Bin No.4455/66
    Cold Bin Volume10m310m313m315m315m3
    Loading Width3.5m3.5m3.6m3.6m3.6m
    Feeding WeightHorizontal 3.15mHorizontal 3.15mHorizontal 3.4mHorizontal 3.5mHorizontal 3.5m
    Fule&Comsuption

    Light/Heavy Oil ≤ 6.5 kg / t;

    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t

    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Vibrating Screen4 Layers4 Layers4 Layers5/6 Layers6 Layers
    Measurement AccuracyAggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%
    Mixing Tank Capacity1000kg1500kg2000kg3000kg4000kg
    Transportion Car Power30kw37kw45kw55kw75kw
    Finished-product Hopper Capacity100t100t150t200t200t /300t
    Dust Emission Concentration≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3
    Environmental Noise≤80dB≤80dB≤80dB≤80dB≤80dB
    Noise In Control Room≤70dB≤70dB≤70dB≤70dB≤70dB
