LB1000 stationary asphalt mixing plant, bitumen mixing plant

    Buy cheap LB1000 stationary asphalt mixing plant, bitumen mixing plant from wholesalers

    Buy cheap LB1000 stationary asphalt mixing plant, bitumen mixing plant from wholesalers
    • Buy cheap LB1000 stationary asphalt mixing plant, bitumen mixing plant from wholesalers

    LB1000 stationary asphalt mixing plant, bitumen mixing plant

    Ask Lasest Price
    Brand Name : MITNIK
    Model Number : LB1000
    Certification : ISO9001
    Price : negotiation
    Supply Ability : unlimited
    • Product Details
    • Company Profile

    LB1000 stationary asphalt mixing plant, bitumen mixing plant

    LB1000 asphalt mixing equipment overall adopts structure of the containermodular design, easy disassembly quick and efficient transition; Dedusting system uses inertial dust and atmospheric blowback secondary baghouse dust collector, high environmental performance; applicable to any fuel burner; five aggregate screening; finished silo selection under the home, small footprint. The device is suitable for any level of asphalt concrete pavement construction, maintenance, and maintenance requirements.

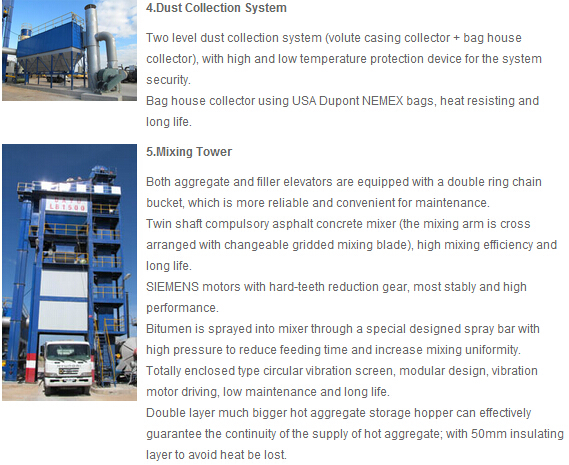

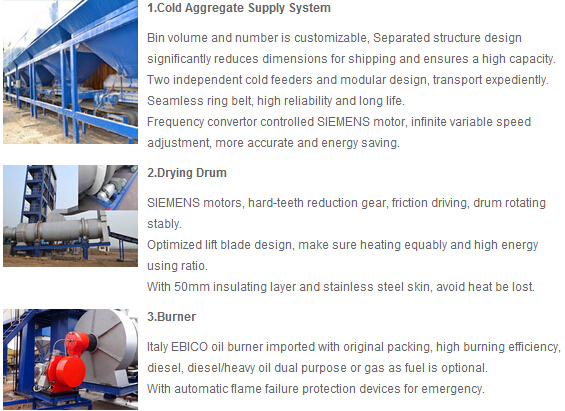

    Characteristics of its Component Parts:




    Parameters of LB1000 asphalt mixing plant:


    ModelLB1000LB1500LB2000LB3000LB4000
    Rated Production Capacity80t/h120t/h160t/h240t/h320t/h
    Power295kw342kw476kw608kw800kw
    Cold Bin No.4455/66
    Cold Bin Volume10m310m313m315m315m3
    Loading Width3.5m3.5m3.6m3.6m3.6m
    Feeding WeightHorizontal 3.15mHorizontal 3.15mHorizontal 3.4mHorizontal 3.5mHorizontal 3.5m
    Fule&Comsuption

    Light/Heavy Oil ≤ 6.5 kg / t;

    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t

    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Light/Heavy Oil ≤ 6.5 kg / t;
    gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
    Vibrating Screen4 Layers4 Layers4 Layers5/6 Layers6 Layers
    Measurement AccuracyAggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%
    Mixing Tank Capacity1000kg1500kg2000kg3000kg4000kg
    Transportion Car Power30kw37kw45kw55kw75kw
    Finished-product Hopper Capacity100t100t150t200t200t /300t
    Dust Emission Concentration≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3≤ 20mg/N.m3
    Environmental Noise≤80dB≤80dB≤80dB≤80dB≤80dB
    Noise In Control Room≤70dB≤70dB≤70dB≤70dB≤70dB
