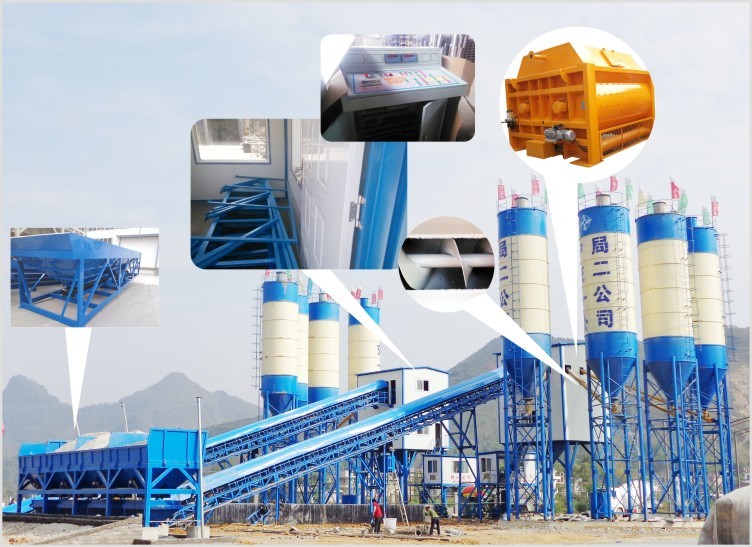

HZS series concrete batching plant belongs to compulsory and efficiency equipment.It adopts the world
popular quick installation modular structure, efficient imported
concrete mixer,computerized controlled system and environment
friendly design. This series of concrete batching plant is mainly
used for projects like bridge, water conservancy, airport, dock and
premixed concrete product factories where large quantity of
concrete is needed.
Our concrete batching plant has the following characteristics:
1) It is low cost, adopts module-based structure and it is very
convenient to install and move the whole machine.
a) The main machine is a compulsory dual-axial mixer,which has good
mixing quality and high efficiency.
b) The aggregate is proportioned by the proportioning machine which
is very accurate and fast.
c) The proportioning of the cement, water, liquid additive is done
by electronic scale which is with high accuracy.
d) The water supply system adopts the siphon pump pressure
principle, which increases the water speed and sprays evenly.
e) Main components of the electrical control system are all
imported, which are with reliable performance, easy to operate, and
could be printed.
2) It is very convenient to install and disassemble the whole
production line. The sides of each storey of external packing can
be opened and is easy to maintain and replace components.
Parematers of HZS concrete batching plant:
| Item | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 |
| Capacity of Production(m3/h) | ≥25 | ≥35 | ≥50 | ≥60 | ≥75 | ≥90 | ≥100 | ≥120 |
| Type of Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS2000 |
| Volume of Storing Hopper(m3) | 3*4 | 3*4 | 3*8 | 3*8 | 3*8 | 3*8 | 3*16 | 3*16 |
| Max Aggregate Diameter(mm) | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharg Height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Aggregate Measuring Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Cement Measuring Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Coal Ash Measuring Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Water Meassuring Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Addictive Measuring Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Total Power(kw) | 55 | 83 | 138 | 145 | 160 | 196 | 190 | 250 |
| Discharge Height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
